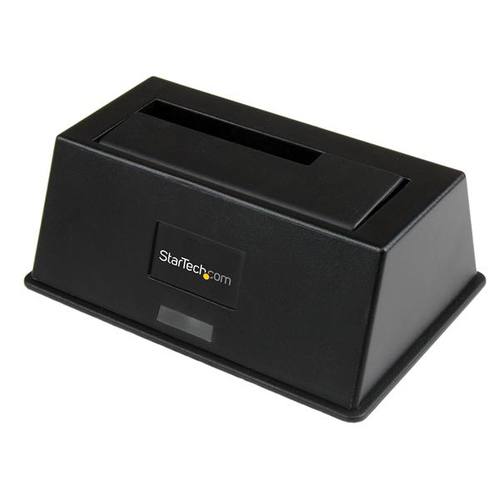

StarTech.com Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay

SKU
SDOCKU33BV
kr 601,23 eks. mva.
2 På lager
StarTech.com Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay (SDOCKU33BV)
SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock

The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.

With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage
SKU SDOCKU33BV
EAN 0065030855303
Specification
Hard drive
Storage media typeHDD, SSD
Storage drive interfaceSerial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported2.5,3.5"
Number of storage drives supported1
Ports & interfaces
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity1
DC-in jackYes
Technical details
UASP supportYes
Package width161 mm
Package height94 mm
Standard interfacesUSB 3.2 Gen 1 (3.1 Gen 1)
Maximum data transfer rate6 Gbit/s
Plug and PlayYes
On/off switchYes
ChipsetASMedia - ASM1053 - 6G
Sustainability complianceYes
Harmonized System (HS) code84733080
Compliance certificatesCE, RoHS
Features
UASP supportYes
Maximum data transfer rate6 Gbit/s
LED indicatorsActivity, Power
Plug and PlayYes
On/off switchYes
ChipsetASMedia - ASM1053 - 6G
Cooling
Built-in fanNo
Power
AC input voltage100-240 V
Output voltage12 V
Weight & dimensions
Weight318 g
Packaging data
Package depth170 mm
Package width161 mm
Package height94 mm
Package dimensions (WxDxH)92 x 160 x 170 mm
Package weight704 g
Packaging content
Included power plug typesEU, NA, UK
AC adapter includedYes
Cables includedUSB
ManualYes
Operational conditions
Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 80%
Indication
LED indicatorsActivity, Power
Ethernet LAN features
LED indicatorsActivity, Power
Sustainability
Sustainability complianceYes
Other features
Standard interfacesUSB 3.2 Gen 1 (3.1 Gen 1)
ChipsetASMedia - ASM1053 - 6G
Compliance certificatesCE, RoHS
Logistics data
Master (outer) case width187 mm
Master (outer) case length476 mm
Master (outer) case height387 mm
Products per master (outer) case10 pc(s)
Harmonized System (HS) code84733080
Manufacturer StarTech.com
